Hign-concerned Chemical: None
Model Number: High Power Laser Head
CNC or Not: CNC
Is Smart Device: YES
Controller: CNC USB
Condition: New
Certification: CE
Material: Aluminum alloy
LT-K20 Output Optical Power: 20W (19~21W)
LT-K20 Electric Power: 24V 4A
LT-K20 Wavelength: 450nm(±10nm)
LT-K20 Focus Length: 40mm
LT-K20 Module Weight: 635g
Feature: Air Assist
Power Adjustable: TTL/ PWM/ Analog Modulation
Cable: 3PIN 80CM
Fan Speed: 90000rpm
Function: Engraving/ Cutting
Operating Temperature: 0~60℃
Compatible with: Various 12V 24V models of DIY laser engraver cutter
Service: Dropping Shipping Service
LASER TREE K20 20W Optical Power Laser Head For CNC Engraver Wood Cutting DIY Laser Tools 450nm TTL/ PWM Blue Light Laser Module
20W Optical Power Laser Module (LT-K20)
LaserTree K20 is a true 20W+ output optical power laser engraving and cutting module. It uses beam compressed technology to combine 4pcs 5.5W laser diodes into a powerful laser beam with 20W+ laser power.
Specification:
Optical power:20W(±1W)
Material: aluminum alloy
Wavelength: 450nm(±10nm)
Light color: blue
Spot form: Punctiform, Adjustable focus
Input voltage: 24V 4A
Interface parameters: support TTL signal control power
Product weight: 635g

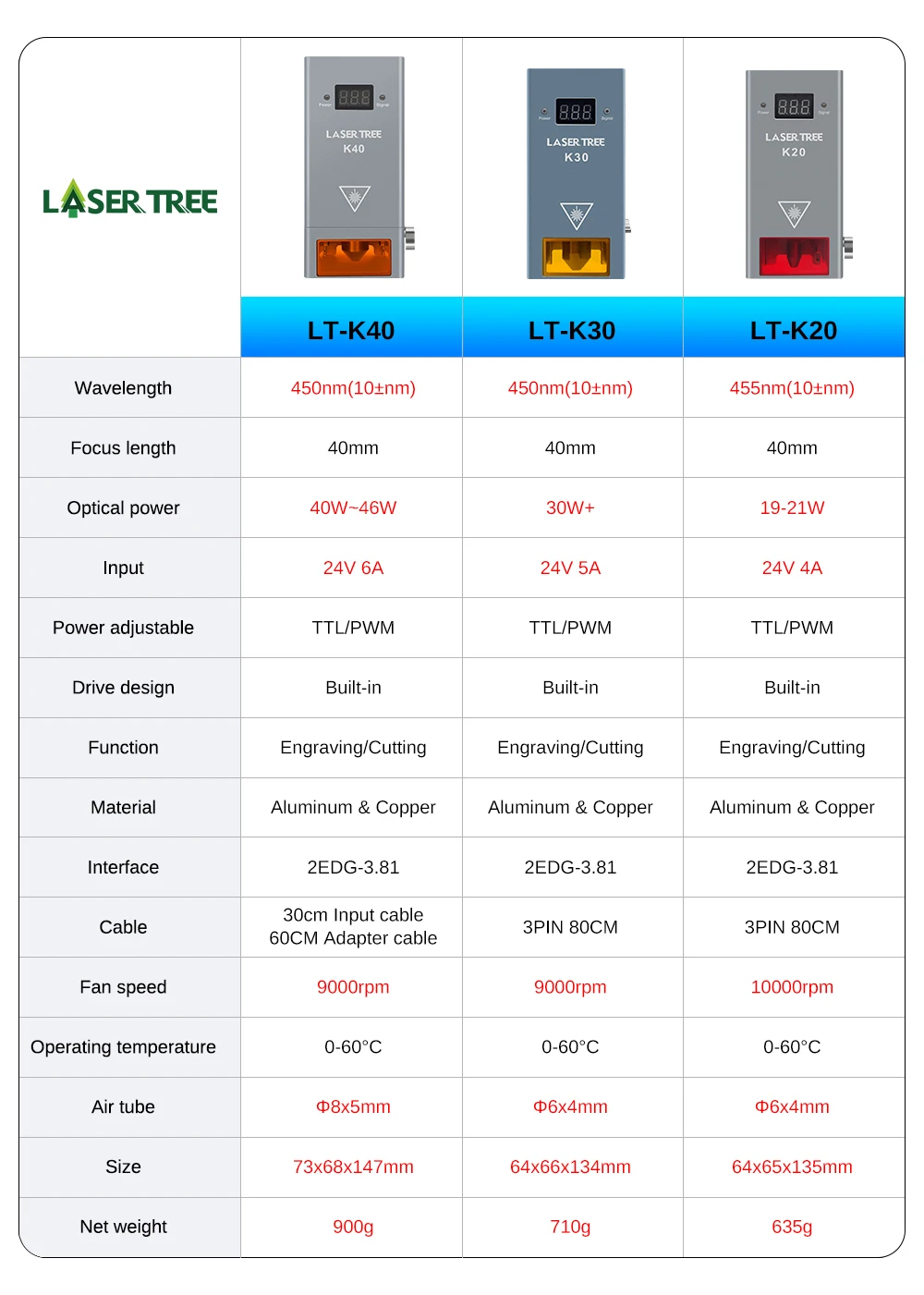

LT-K40$LT-K30$LT-K20:
Plywood & Acrylic & MDF Cutting(One-pass)
Materlal: 12mm bass plywood ，Power: 100% Speed: 10mm/min
Materlal: 8mm Acrylic ， Power: 100% Speed: 50mm/min
Materlal: 5mm MDF，Power: 100% Speed: 360mm/min
4-Beam Compressed Technology
Built-in 4pcs 5W beam compressed laser diodes, 20W optical power laser module

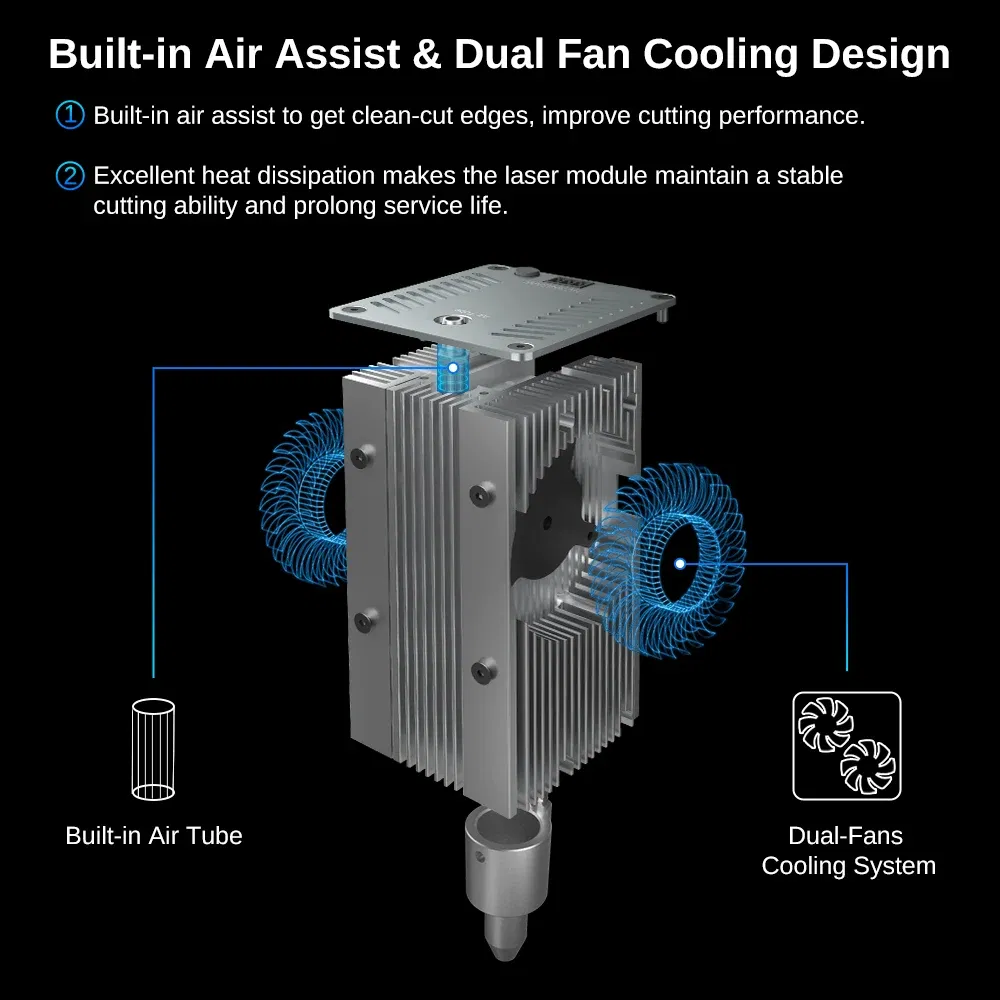

Built-in Air Assist & Dual Fan Cooling Design
① Built-in air assist to get clean-cut edges, improve cutting performance.
②Excellent heat dissipation makes the laser module maintain a stablecutting ability and prolong service life.

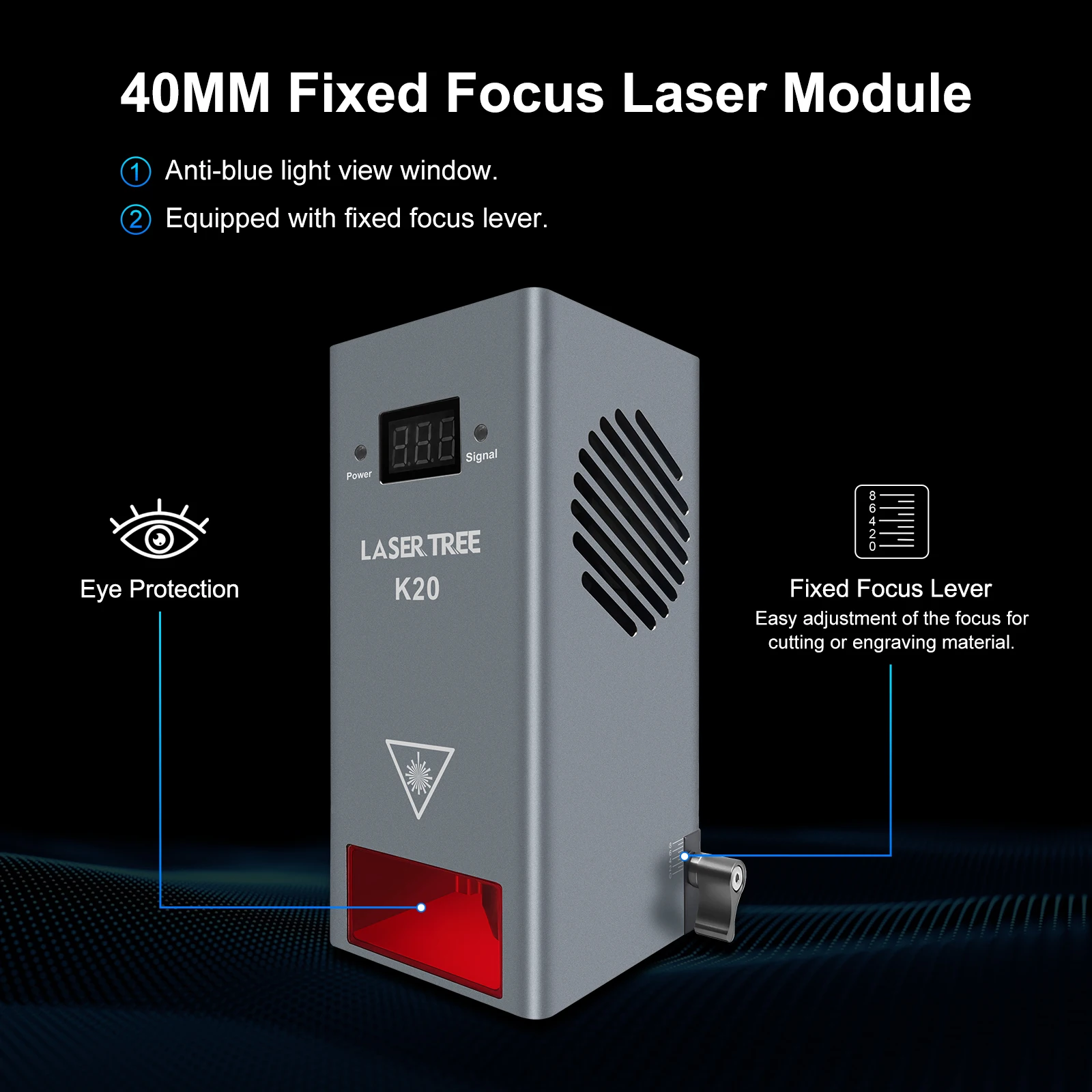

40MM Fixed Focus Laser Module
①Anti-blue light view window.
②Equipped with fixed focus lever
Temperature Display & Alarm Function
①Excessive working temperatures can reduce the life time of the laser head at an accelerated rate.
②When the working temperature of laser module over 55°C, it will sound an alarm through the buzzer.
High Stable 2EDG3.81 Connector

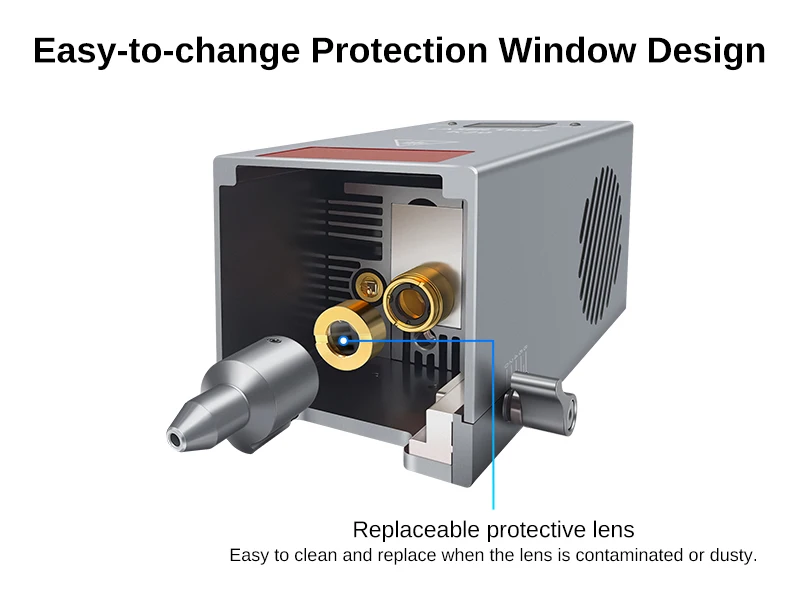

Easy-to-change Protection Window Design
Replaceable protective lensEasy to clean and replace when the lens is contaminated or dusty.

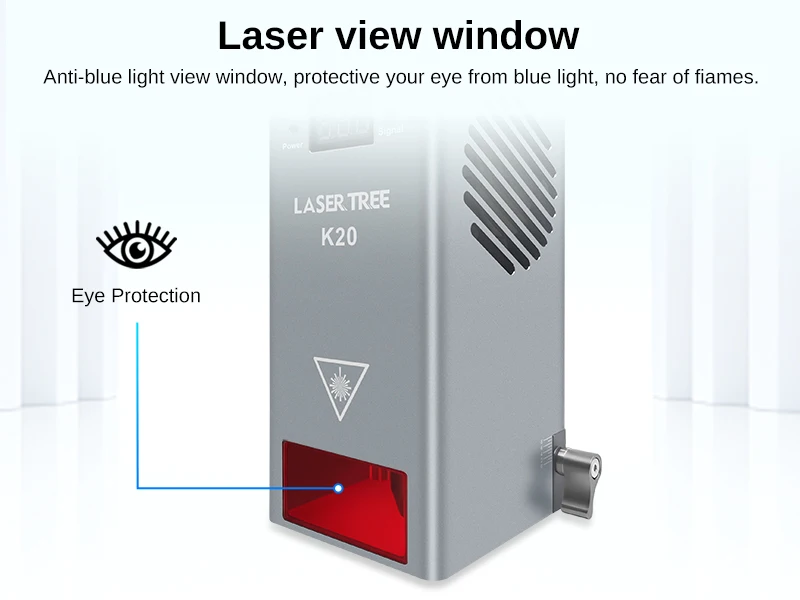

Laser view window
Anti-blue light view window, protective your eye from blue light, no fear of fiames.
Super Fast Egraving Speed
2 times engraving speed compare with 10W laser power module.
LT-AP-MP56（US/EU-Plug）
24V Electromagnetic Air Assist Pump
①Cut deeper and faster
②Protect laser head lens
③Clean surface and smooth edge
④Adjustable 10-26L/min Output
Shipping:
- - Fast & Reliable Delivery: We prioritize prompt shipping to ensure your order arrives quickly.
- - Secure Packaging: Your items are carefully packed to prevent damage during transit.
- - Flexible Shipping Options: Choose from standard, expedited, or express delivery at checkout.
- - Customer Support: For any shipping inquiries or issues, our support team is ready to assist.
Wholesale orders:
We can provide the best prices on wholesale orders as we have established a long business relationship with chinese manufacturers, and we pass along those prices to our customers. Please get in touch with us if you need this product or a mix of products in wholesale quantities, we're here to help.
Return & Exhange:
Upon receiving your order, please inspect the items carefully—check for correct quantities, colors, and overall condition. If you are not completely satisfied or wish to initiate a return or exchange, kindly contact us as soon as possible. To ensure a smooth process, items should be returned in their original condition. We’re here to assist you with any concerns. Please note sample items are not eligible for return&refund. Only wholesale orders can be returned & refunded.
Feedback:
We appreciate your time and effort in providing feedback, as it helps us understand your experience and improve our services.
There are no reviews yet.
Color: lake blue, size: xs, ships from: china - laser tree k20 20w optical power laser head with air assist ttl blue light module for laser machine cutting engraving diy tools
Please note sample items are not eligible for return&refund. Only wholesale orders can be returned & refunded
We offer wholesale prices up to 70% discount or more (min order US $10,000), if you're interested in wholesale purchases please send us an enquiry.
Shipping:
Standard - Ship from China
Shipping fee: Free shipping
Estimated delivery time ? 7-21 days
Samples cannot ship outside the 48 continental States. For example: Alaska, Puerto Rico and Hawaii etc.
- After Sales Assurance
- Secure Payment
- Refund for No Delivery
-
Secure payments Every payment you make on Best-sell.com is secured with strict SSL encryption and PCI DSS data protection protocols
-
Standard refund policy Claim a refund if your order doesn't ship, is missing, or arrives with product issues
